Woven Gabion Wire Mesh For Erosion Control & Bank Stabilization

Brand Name : KN

Model Number : KN-gabion

Certification : CE ISO SGS COC PVOC

Place of Origin : CN

MOQ : 100 pc

Price : USD 35-50

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 500 pc per day

Delivery Time : 15 work days

Packaging Details : pallet

Product Name : Woven Gabion For Hydraulic Engineering: Erosion Control & Bank Stabilization

Key Words : Gabion

Zinc Coated : 40-60g,60g-80g,270g,245g, etc,

Finish : Galvanized or PVC coated

Twist Style : Hexagonal Double Twisted Weaving

Lacing Wire : 2.2mm

Type : gabion wire mesh

Width : 2.0m

Certificated : ISO-9001:2008 and SGS

Packing : Packed in bundles or on pallets

Contact Now

Woven Gabion For Hydraulic Engineering: Erosion Control & Bank Stabilization

Woven Gabion Mesh for Hydraulic Engineering

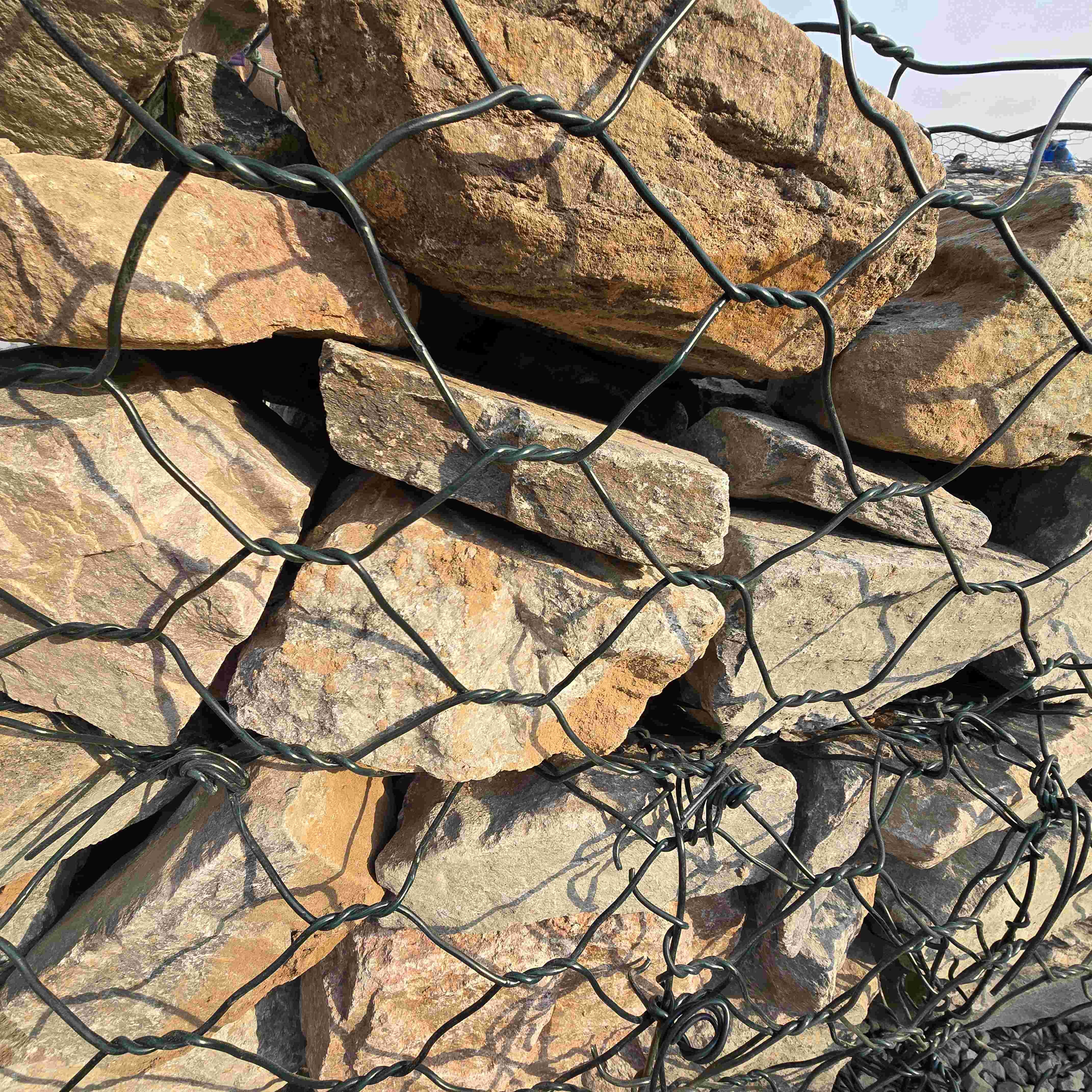

Woven Gabion is a durable mesh structure crafted from double-twisted hexagonal galvanized steel wire, engineered for hydraulic engineering applications such as riverbank stabilization, coastal erosion control, and flood defense systems. Its flexible design accommodates irregular terrains while providing structural integrity under dynamic water flow conditions. Compliant with ASTM A975 and EN 10223-3 standards, it ensures corrosion resistance and load-bearing capacity for spillway channels, dike reinforcement, and slope protection projects. Available in customizable sizes (e.g., 2x1x1m to 4x2x1m) with rock-fill compatibility, it integrates seamlessly into large-scale water management infrastructure.

Key Features

  • Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
  • Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
  • Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
  • Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

Applications

  • Civil Engineering: Riverbank stabilization, highway embankments
  • Architecture: Retaining walls, sound barriers, decorative façades
  • Disaster Prevention: Flood control barriers, landslide mitigation systems
  • Mining: Tailings dam reinforcement, slope retention

Customization Services

  • Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
  • Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
  • Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
gabion specifications Mesh hole modle
8x10cm 6x8cm
Length(m) Width(m) Height(m) Galvanized or PVC coated Galvanized or PVC coated
Mesh diameter Zinc Mesh diameter Zinc
2 1 1 2.7mm >245g/m² 2.0mm >215g/m²
3 1 1 Side wire diameter Zinc Side wire diameter Zinc
4 1 1 3.4mm >265g/² 2.7mm >245g/m²
6 1 1 Binding wire diameter of 2.7m Binding wire diameter of 2.0m
