Woven Gabion Mesh For Hydraulic Engineering Durable Erosion Control & Water Management

Brand Name : KN

Model Number : KN-gabion

Certification : CE ISO SGS COC PVOC

Place of Origin : CN

MOQ : 100 pc

Price : USD 40-50

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 500 pc per day

Delivery Time : 15 work days

Packaging Details : pallet

Product Name : Woven Gabion Mesh For Hydraulic Engineering - Durable Erosion Control & Water Management

Key Words : Gabion

Selvedge Wire : 3.4mm

Usage : Construction

Processing : Welding

Tensible Strength : 350-550N/mm

Height : 0.17m ,0.23m,0.30m

Tie Wire : 2.70mm

Customization : Available upon request

Packing : Packed in bundles, then on pallet

Contact Now

Woven Gabion Mesh For Hydraulic Engineering - Durable Erosion Control & Water Management

Woven Gabion Mesh for Hydraulic Engineering

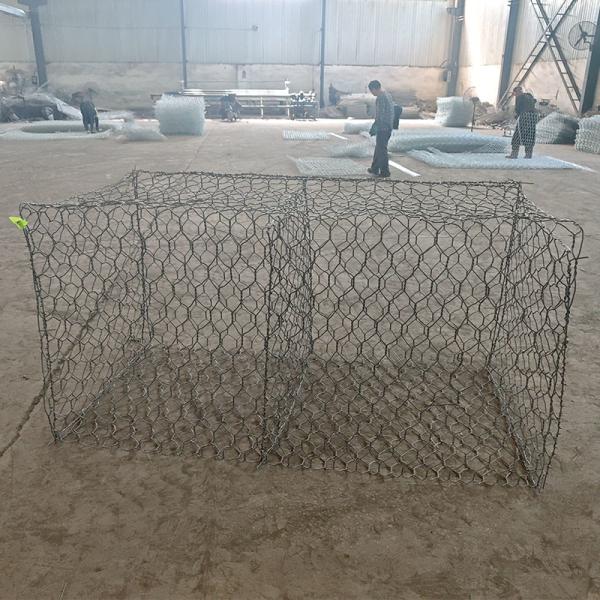

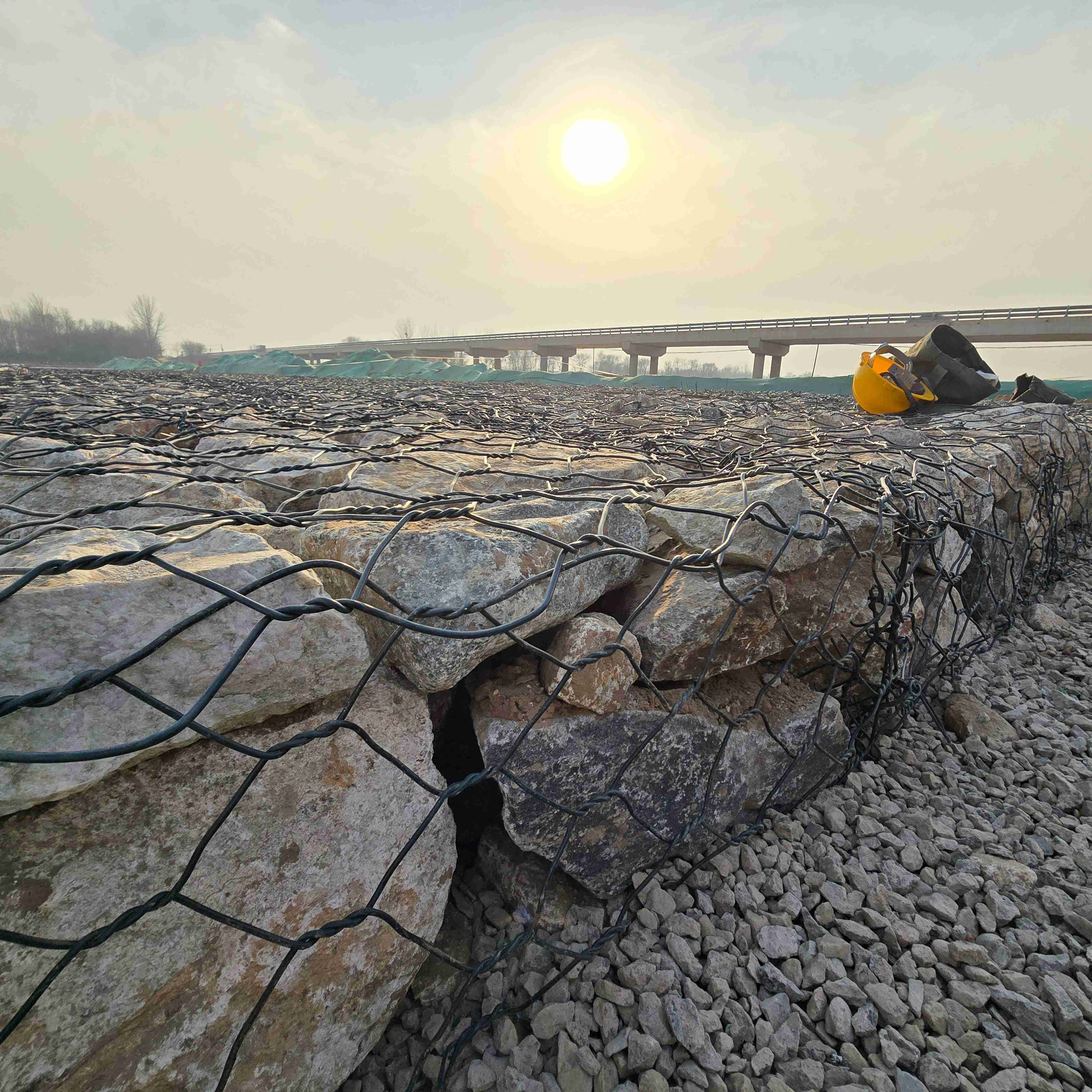

Woven Gabion, constructed with double-twisted hexagonal steel wire (galvanized or Galfan-coated), is tailored for hydraulic structures including canal linings, weir foundations, and tidal barrier systems. Its interlocking design withstands hydrostatic pressure and sediment loads in applications like riverbed protection, reservoir embankments, and stormwater drainage networks. Compliant with ISO 10380 and ASTM A975, standard dimensions (e.g., 3x1x1m, 4x2x0.5m) adapt to project-specific needs for rock-filled retention in high-flow environments. Used in coastal revetments and floodplain management, it ensures long-term stability for critical water infrastructure.

Key Features

  • Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
  • Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
  • Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
  • Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

Applications

  • Civil Engineering: Riverbank stabilization, highway embankments
  • Architecture: Retaining walls, sound barriers, decorative façades
  • Disaster Prevention: Flood control barriers, landslide mitigation systems
  • Mining: Tailings dam reinforcement, slope retention

Customization Services

  • Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
  • Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
  • Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
gabion specifications Mesh hole modle
8x10cm 6x8cm
Length(m) Width(m) Height(m) Galvanized or PVC coated Galvanized or PVC coated
Mesh diameter Zinc Mesh diameter Zinc
2 1 1 2.7mm >245g/m² 2.0mm >215g/m²
3 1 1 Side wire diameter Zinc Side wire diameter Zinc
4 1 1 3.4mm >265g/² 2.7mm >245g/m²
6 1 1 Binding wire diameter of 2.7m Binding wire diameter of 2.0m
