Pre Assembled Galvanized Gabion Box Kits 40% Faster Install

Brand Name : KN

Model Number : KN-gabion

Certification : CE ISO SGS COC PVOC

Place of Origin : CN

MOQ : 100 pc

Price : USD 15-18

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 500 pc per day

Delivery Time : 15 work days

Packaging Details : pallet

Product Name : Pre-Assembled Galvanized Gabion Box Kits - 40% Faster Install

Key Words : Gabion Box

Contact Now

Pre-Assembled Galvanized Gabion Box Kits - 40% Faster Install

Product Overview

Durable hot-dip galvanized/PVC-coated steel (50+ years); Flexible hexagonal mesh prevents structural failure; Eco-friendly permeable design promotes vegetation; Quick modular assembly reduces 40% labor cost; Certified CE/ASTM/ISO for flood/erosion control; Reusable & recyclable with 0 maintenance; Withstands 5m/s water flow & 30kN/m² loads; Custom sizes (1-6m) for retaining walls/roadbeds

Key Features

Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

Applications

Civil Engineering: Riverbank stabilization, highway embankments
Architecture: Retaining walls, sound barriers, decorative façades
Disaster Prevention: Flood control barriers, landslide mitigation systems
Mining: Tailings dam reinforcement, slope retention

Customization Services

Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)

gabion specifications			Mesh hole modle
			8x10cm		6x8cm
Length(m)	Width(m)	Height(m)	Galvanized or PVC coated		Galvanized or PVC coated
			Mesh diameter	Zinc	Mesh diameter	Zinc
2	1	1	2.7mm	>245g/m²	2.0mm	>215g/m²
3	1	1	Side wire diameter	Zinc	Side wire diameter	Zinc
4	1	1	3.4mm	>265g/²	2.7mm	>245g/m²
6	1	1	Binding wire diameter of 2.7m		Binding wire diameter of 2.0m

Pre Assembled Galvanized Gabion Box Kits 40% Faster Install

Product Tags:

galvanized gabion box

galvanized gabion basket

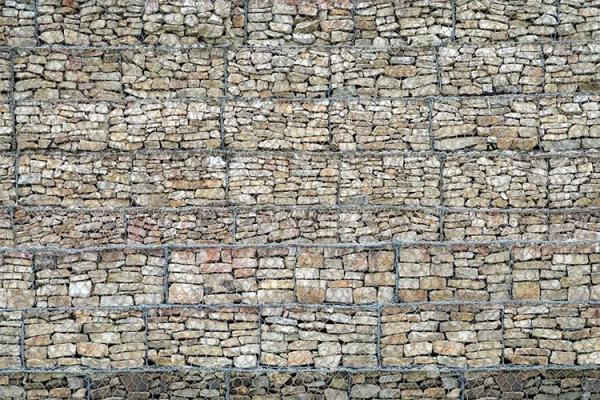

Pre Assembled Galvanized Gabion Box Kits 40% Faster Install Images
