2X1X0.5 PVC Coated Wires The Eco Friendly Choice For Flexible And Permeable Gabion Mattresses

  • 1
  • 2

Brand Name : KN

Model Number : 6X2X0.3

Certification : ISO CE

Place of Origin : CHINA

MOQ : 100pc

Price : USD 16-20

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000m2 per day

Delivery Time : 7-8 days

Packaging Details : pallets

Surface Treatment : Hot-dipped Galvanized, Galfan Coated

Mesh Size : 60x80mm, 80x100mm, 100x120mm

Wire Diameter : 2.0-4.0mm

Features : Flexible, Durable, Easy to Install

Material : Galvanized Steel Wire

Tie Wire : 2.2mm

Application : Erosion Control, Slope Stabilization, Riverbank Protection

Tensile Strength : 350-500N/mm2

Color : Silver or Green

Selvedge Wire : 3.4mm

Zinc Coating : 240-290g/m2

Size : 2x1x1m, 3x1x1m, 4x1x1m, or customized

Unit Weight : 2.0-4.0kg/m2

Packing : Packed in bundles or on pallets

Lacing Wire : 2.2mm

Contact Now

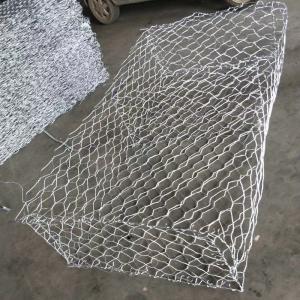

Woven Gabion Mattress for Erosion Control

Manufactured from double-twisted hexagonal steel wire (2.7-4.0mm) with heavy galvanized coating (minimum 245g/m²), our gabion mattresses provide durable slope protection in hydraulic environments. The low-profile units (standard 2m×1m×0.3m) with 80×100mm mesh openings are engineered for riverbank stabilization, channel lining, and coastal defense applications. The flexible yet sturdy construction conforms to uneven surfaces while resisting water currents. Internal partition walls enhance structural stability in flowing water conditions. Custom configurations available to meet specific project requirements for erosion control and scour protection.

Specification
Product Name
Gabion
Hole Type
Hexagonal
Production process
Three twist / Five twist
Material
GI wire,PVC coated wire,galfan wire
Wire Diameter
2.0mm-4.0mm
Hole Size
60×80mm,80×100mm,100×120mm,120×150mm
Gabion Size
2m×1m×0.5m,2m×1m×1m,3m×1m×0.5m,3m×1m×1m4m×1m×0.5m,4m×1m×1m,Other sizes can be customized.
Gabion Features
1. economy. Just put the stone into the cage and seal it. 2. The construction is simple without special technology.
3. It has a strong ability to resist natural damage, corrosion resistance and adverse climate impact.
4. It can withstand large-scale deformation without collapse.
5. The silt between the stone gaps of the cage is conducive to plant production and can be melted into one with the surrounding
natural environment.
6. It has good permeability and can prevent damage caused by hydrostatic force. Conducive to the stability of hillside and beach
7. Save transportation cost, fold it up for transportation and assemble it on the construction site. 8. Good flexibility: no
structural joint, the overall structure has ductility.
9. Corrosion resistance : galvanized materials are not afraid of seawater.
10. Environmental protection materials: cadmium (CD) < 10ppm, lead (PB) < 50ppm,
other harmful substances such as mercury (Hg), hexavalent chromium (Cr6 +), PBB and PBDE are not detected, which fully meet the environmental protection standards of Rosh.

Key Features and Benefits
Durability and Longevity: Constructed from corrosion-resistant materials such as galvanized steel wire, our gabion mattresses exhibit exceptional longevity even in harsh environmental conditions.
Flexibility: These mattresses can be easily customized to suit specific project requirements, including size, shape, and filling material.
Environmental Friendliness: Unlike conventional concrete structures, gabion mattresses promote ecological balance by facilitating drainage and habitat creation for wildlife.


Cost-Effectiveness: Compared to traditional retaining walls and erosion control measures, gabion mattresses offer a cost-efficient solution with minimal maintenance requirements.
Permeability: The stone fill allows water to seep through the structure while retaining the soil, eliminating the need for additional drainage to relieve hydrostatic pressures.

Applications
Our gabion mattresses are widely used in various applications, including:
Erosion Control: Stabilizing soil and preventing erosion in riverbanks, coastal areas, and slopes.
Slope Stabilization: Reinforcing steep slopes and embankments to reduce the risk of landslides and soil instability.
Channel Lining and Bank Protection: Serving as durable linings for channels and culverts, preventing scouring and enhancing hydraulic performance.
Landscaping and Aesthetic Enhancement: Adding texture and visual interest to outdoor spaces while blending harmoniously with natural surroundings.

Manufacturing Excellence
As the largest manufacturer in China, we have state-of-the-art production facilities and advanced technology to ensure the highest quality standards. Our factory is ISO-certified, and we provide SGS test reports to guarantee the reliability and durability of our products. We also adhere to international standards such as ASTM A974 and ASTM A641.

2X1X0.5 PVC Coated Wires The Eco Friendly Choice For Flexible And Permeable Gabion Mattresses


Product Tags:

pvc coated gabion mattress



pvc coated gabions and mattresses



slope gabion mattress


China 2X1X0.5 PVC Coated Wires The Eco Friendly Choice For Flexible And Permeable Gabion Mattresses factory

2X1X0.5 PVC Coated Wires The Eco Friendly Choice For Flexible And Permeable Gabion Mattresses Images
